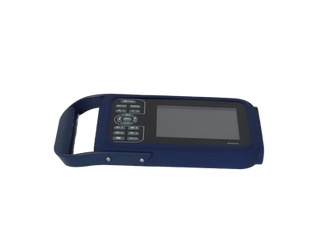

VET-S1 Portable Veterinary Ultrasound

The VET-S1 is a portable veterinary ultrasound designed for reproductive and diagnostic imaging across cattle, horses, sheep, goats, pigs, and small mammals. It features a high-definition display, multiple probe compatibility, measurement functions, and a long-life rechargeable battery for extended field use. The system is supplied in a hard protective carry case, making it rugged and farm-ready for daily use by veterinarians and breeding technicians.

Options

Accessories / Add-Ons

Key Features

  • High-resolution imaging for reproductive evaluation

  • Portable handheld design for on-farm scanning

  • Supplied with a hard protective carry case

  • Large rechargeable lithium battery (≈3+ hours continuous operation)

  • Freeze, save, download & print imaging capability

  • Gestation age and size measurement tools built-in

  • Adjustable contrast, smoothing & focus controls

  • Designed for tough livestock handling environments

Technical Specifications

display

  • High-resolution LCD handheld control unit

battery

  • Rechargeable lithium-ion (≈3–3.5 hours continuous running)

functions

  • Heart rate measurement

  • Size measurement

  • Gestation age calculation

  • Freeze & save image capture

probe compatibility

  • Rectal linear probe (reproductive scanning)

  • Convex abdominal probe (abdominal / small animal / late-stage pregnancy)

warranty

  • Main unit: 2 years

  • Probes: 1 year

Supported Animals (collapsible info section)

  • Cattle (Dairy & Beef)

  • Horses

  • Sheep

  • Goats

  • Pigs

  • Small mammals

Kit Options (Configurable Packages)

Kit Included Configuration Suitable For
Kit 1 VET-S1 main unit + Rectal linear probe Cattle & Horses (reproductive examination)
Kit 2 VET-S1 main unit + Convex abdominal probe Sheep, Goats, Pigs & Small Mammals (abdominal / pregnancy imaging)
Kit 3 VET-S1 main unit + Rectal linear probe + Medical-grade extension sleeve Cattle & Horses – increased reach & hygiene protection
Kit 4 VET-S1 main unit + Rectal linear probe + Convex abdominal probe Mixed herds / AI technicians handling multiple livestock classes

Accessories / Add-Ons

  • Rectal probe extension sleeve (RP-01) — Medical-grade sleeve for deeper reach & sanitary protection

  • Convex abdominal probe (CP-01) — For sheep, goats, pigs & small mammals

  • Hands-free viewing goggles (GG-01) — Allows scanning while keeping both hands free

  • 12V Vehicle charger (CC-01) — For mobile and field-based scanning
