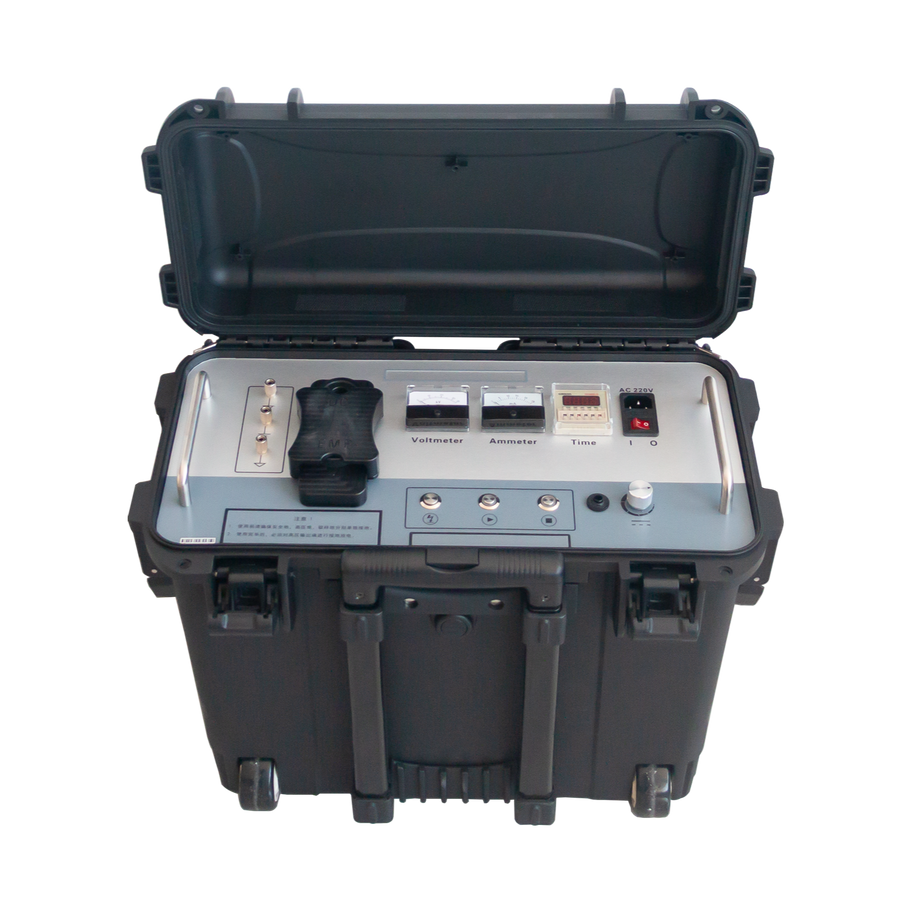

SG5.500 Compact High Voltage Surge Generator

The SG5.500 Compact is a lightweight high-voltage surge generator designed for low-voltage cable fault testing and insulation diagnostics. Delivering 0–5 kV DC output with 500 J surge energy, it supports DC withstand testing, TDR methods, ICM impulse current, and MIM/ARC multiple impulse methods (with TDR.950A). Compatible with the GM Series acoustic pinpointing receivers, this 22 kg portable system is optimized for field crews who need mobility, safety, and essential fault location functions.

Key Features

  • Output surge voltage: 0–5 kV (continuously variable)

  • Surge energy: 500 J (8 μF capacity)

  • DC withstand voltage: 0–5 kV / 0–74 mA continuous

  • Impact power: 400 W

  • Impulse frequency: 0–20 impulses per minute

  • Negative polarity output

  • Compact 22 kg case with wheels for portability

  • Integrated capacitor reduces leakage and improves stability

  • Safety features: zero-voltage start, automatic discharge at shutdown

  • Test modes:

    • Single surge for pre-location

    • Cycle surge for pinpointing

    • DC withstand testing for insulation condition

Technical Specifications

  • Mains supply: 220–230 V (optional 110–120 / 240 V via isolating transformer)

  • Frequency: 45–60 Hz

  • Impulse sequence: Single-shot or variable

  • Operating temperature: –20 °C to +60 °C

  • Humidity: 5–90% RH

  • Elevation: <4500 m

  • Dimensions: 540 × 400 × 450 mm

  • Weight: 22 kg

Standard Accessories

  • High Voltage Surge Generator ×1

  • High Voltage Test Lead ×1

  • Power Cord ×1

  • Ground Wire Set ×1

  • Discharge Rod ×1

  • 8 A Spare Fuses ×5

  • User Manual ×1

  • Factory Conformance Certificate ×1

  • Warranty Certificate ×1
