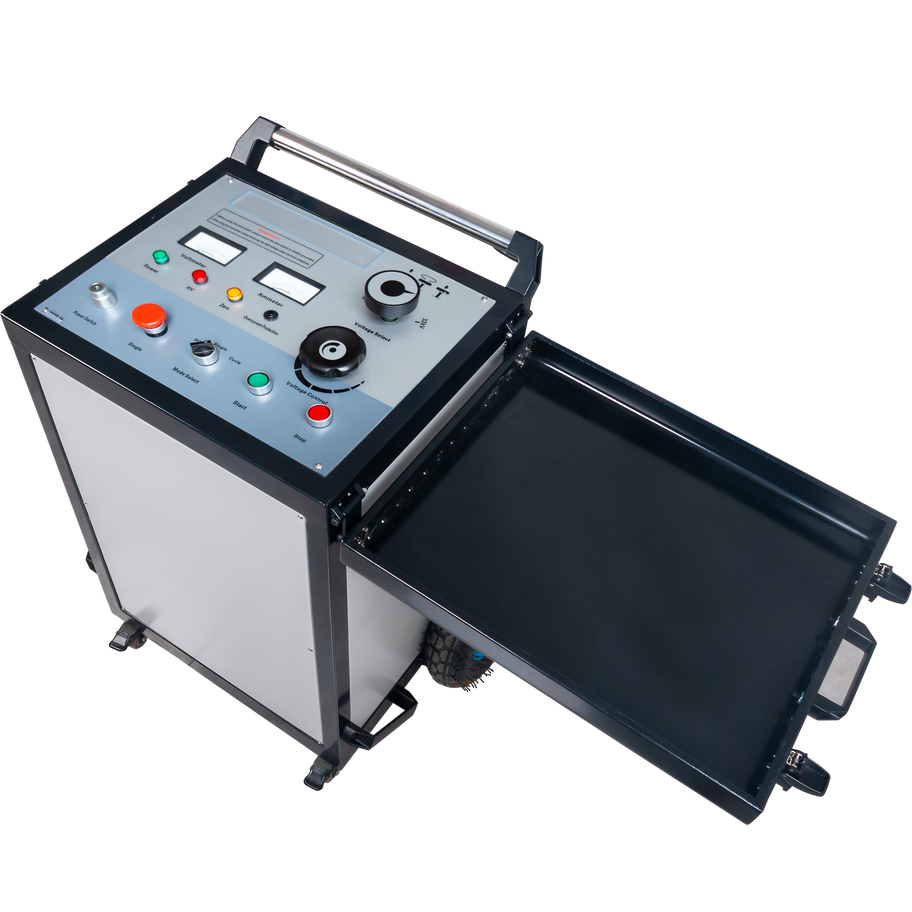

SG32.3000T High Voltage Surge Generator System

The SG32.3000T is a high-voltage surge generator and DC test system designed for cable fault location and diagnostics. It supports TDR, ARC Reflection Method, Impulse Current Method, and acoustic pinpointing (with GM Series receivers and accessories). With surge energy up to 3062 J, a compact trolley design, and integrated DC withstand testing, the SG32.3000T combines power, portability, and reliability for advanced fault location tasks in the field.

Key Features

  • Surge HV voltage: 0–32 kV

  • Surge energy: 3062 J

  • Surge power: 2 kVA

  • Capacitance configuration: 5 μF / 32 kV

  • Surge time: Auto surge ±4 s, or manual control

  • Real-time, accurate HV side measurement

  • Intuitive current & voltage pointer display for discharge process visibility

  • Zero start protection & automatic capacitor discharge when stopped

  • DC Withstand Voltage Testing up to 32 kV

  • Built-in high-precision fault waveform sampling module

  • Timing & manual discharge modes

  • Easy-move trolley design for portable field deployment

  • Rugged system designed for safe and reliable operation

Technical Specifications

  • High-voltage divider accuracy: Class 1.5

  • Dimensions: 750 × 530 × 890 mm

  • Weight: ≤96 kg

  • Power supply: AC 220 V ±10%, 50 Hz ±2 Hz

  • Operating temperature: –20 °C to +50 °C

Included Accessories

  • Integrated HV measurement and waveform sampling module

  • Current & voltage pointer display system

  • Safe capacitor discharge with timed/manual options

Optional Accessories

  • 25 m Lead Set: 1 × HV lead, grounding wire set, power cord

  • 30 m Lead Set: 1 × HV lead, grounding wire set, power cord

  • ITE Power Packs:

    • FT-302 Inverter (3000 W) + 4 × 105 Ah Calcium (BB4X105) or LiFePO₄ (Li100) batteries – portable/mountable

    • FT-502 Inverter (5000 W) + 4 × 105 Ah Calcium (BB4X105) or LiFePO₄ (Li100) batteries – portable/mountable
