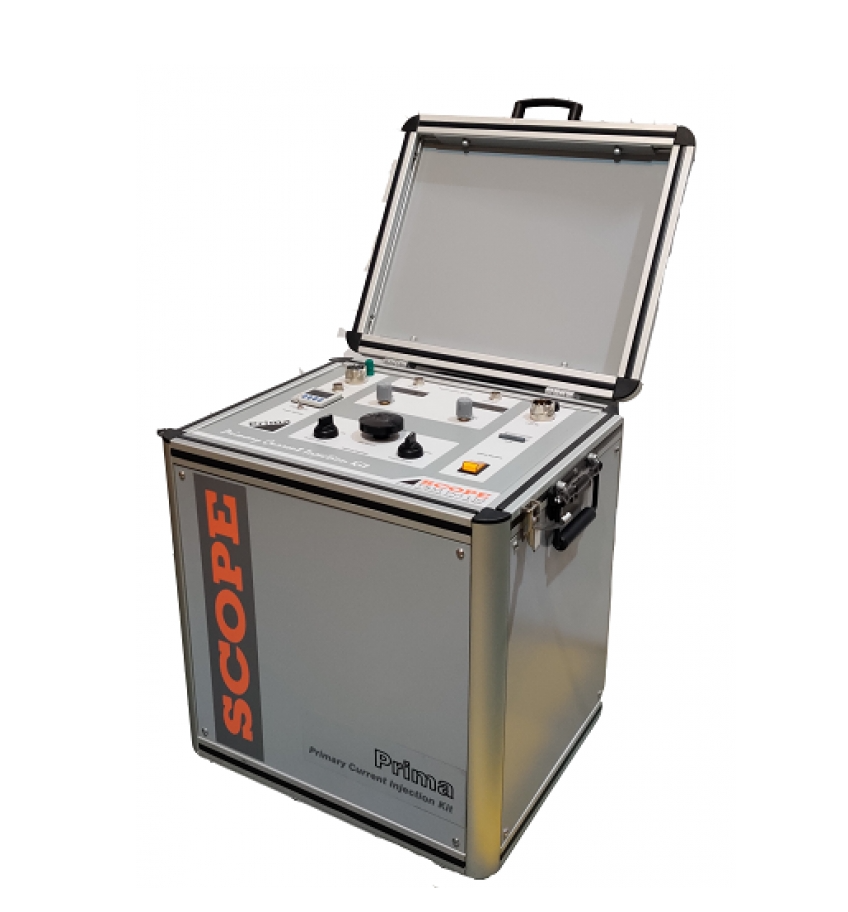

PRIMA Series Primary Injection Test System

The PRIMA Series is a high-power primary injection test system designed for testing protection relays, molded-case circuit breakers (MCCBs), air circuit breakers (ACBs), CT circuits, and busbar systems.
With powerful output capacity, precise control, and rugged construction, the PRIMA Series delivers accurate, repeatable fault-level currents for commissioning, maintenance, and certification testing.

Key Features

  • High-capacity primary current injection up to several kilo-amps (model dependent)

  • Ideal for testing ACBs, MCCBs, CTs, relays, and busbar joints

  • Digital metering for current, time, and trip verification

  • Fast-rise output for accurate protection relay testing

  • Adjustable current control with fine/coarse settings

  • Built-in timer for over-current and trip timing tests

  • Short-duration and continuous output modes (per model)

  • Rugged trolley-type design for workshop or substation use

  • Thermal & overload protection for operator safety

Technical Specifications

Parameter Specification
Output Current Model-dependent: typically 1 kA – 10 kA
Output Voltage 5–15 V (high-current low-voltage design)
Duty Cycle Short duration high-current bursts
Metering Digital AC current & timer display
Timer Accuracy ±0.1 ms
Control Modes Coarse/Fine current adjustment
Protection Thermal, overload, short-circuit
Power Supply 220 V / 380 V AC (depending on model)
Construction Portable trolley or bench unit
Weight Varies by current rating (typically 40–120 kg)

Standard Accessories

  • High-current output leads

  • Return cables

  • Timer/test control leads

  • Power cable

  • User manual & calibration certificate

Applications

  • Primary injection testing for:

    • ACBs & MCCBs

    • CT primary circuits

    • Protection relays

    • Switchgear

    • Busbar joints

    • Substation commissioning

  • Factory acceptance tests & routine QA

Optional Add-Ons

  • Heavy-duty clamp adaptors

  • Extended high-current lead sets

  • Remote control pendant

  • Hard ruggedized case

  • Mobile dolly kit for onsite use
