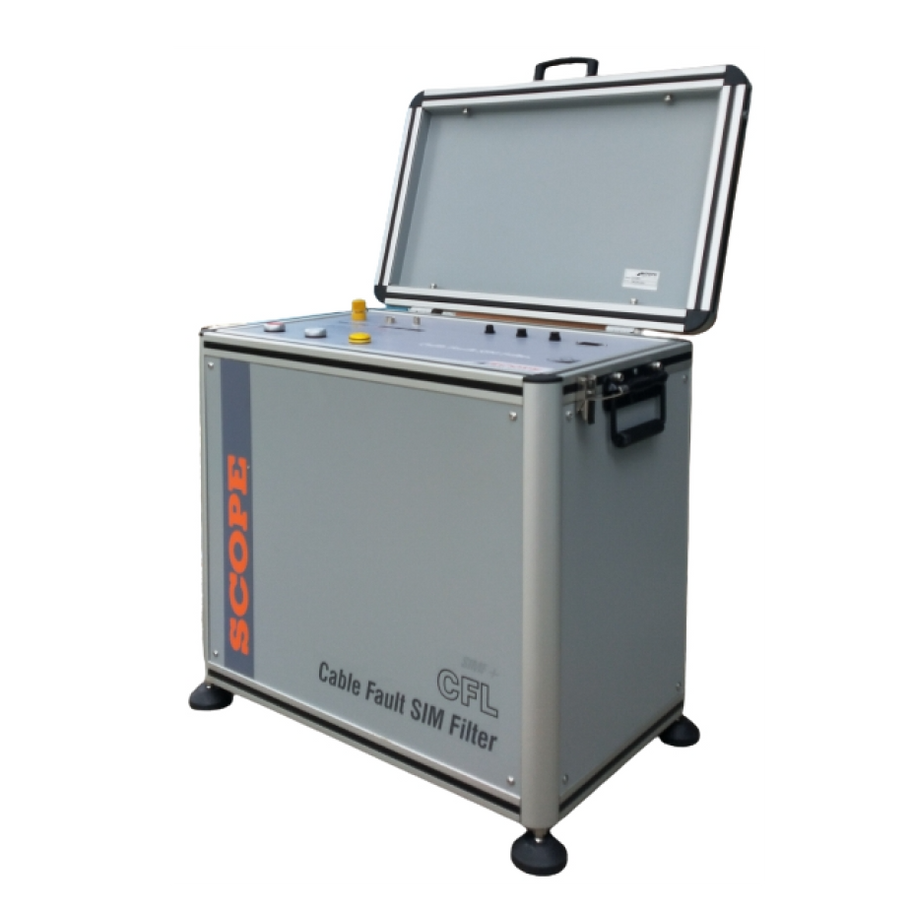

CFL SIMF Surge Impulse Generator & Fault Locator

The CFL SIMF is a combined surge impulse generator and prelocator used for locating high-resistance faults in underground power and communication cables. It integrates TDR (Time Domain Reflectometry) and Surge Impulse (SIM/ICM) methods in one portable unit, enabling both distance measurement and pinpointing. The system is designed for field engineers requiring a complete fault detection solution in a compact, durable form.

Key Features

  • Combines prelocation and impulse generation in one system

  • Supports TDR, SIM, and ICM methods

  • Measurement range up to 32 km with ±0.1% accuracy

  • High surge energy for prelocation and burn-down testing

  • Automatic discharge and safety interlocks

  • Compatible with CFL PP3 pinpointing system

  • Compact, air-cooled design for field portability

  • Rugged construction for substation and service use

Technical Specifications

Parameter Specification
Output Voltage 0–8 / 16 kV selectable
Surge Energy 1000 J (each range)
Prelocation Range Up to 32 km
Accuracy ±(1 m + 0.01 % of distance)
Output Current Max 240 mA
Input Supply 230 V AC ±10 %, 50 Hz ±1 %, 1.5 kVA
Operating Modes TDR / SIM / ICM / Burn-down
Display 5.7″ LCD
Discharge Automatic internal discharge
Weight ≈ 70 kg
Dimensions 700 × 600 × 750 mm

Standard Accessories

  • HV output cable (5 m)

  • Earth cable (5 m)

  • Mains power cable (3 m)

  • User manual & test report

  • Carry case

Applications

  • Fault location on LV and MV underground power cables

  • High-resistance and breakdown fault prelocation

  • Cable burn-down and insulation testing

  • Use with PP3 for acoustic pinpointing
