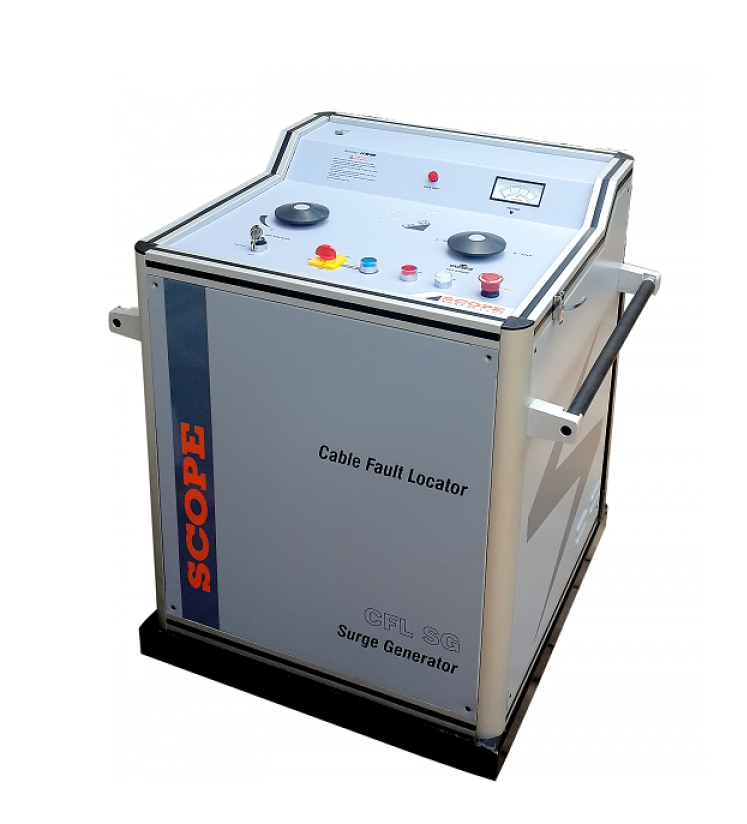

CFL SG 3210 Surge Generator (High-Energy Series)

The CFL SG 3210 is a high-energy surge generator for fault location on medium- and high-voltage power cables up to 33 kV. With selectable output ranges of 0–8 / 16 / 32 kV and up to 1000 J per range, it supports all standard fault location methods when paired with CFL Prelocators and Pinpointing Systems.
Equipped with integrated safety interlocks, automatic discharge, and optional DC testing and burn modes, the SG 3210 is a versatile field-ready platform for accurate, safe, and repeatable cable fault diagnostics.

Key Features

  • Output voltage ranges: 0–8 / 16 / 32 kV, selectable

  • Surge energy: 1000 J per range

  • Suitable for LV, MV, and HV cables up to 33 kV

  • Compatible with CFL PL Prelocators (TDR / ARM / SIM / MIM)

  • Works seamlessly with PP3 Pinpointing System for final fault location

  • Built-in DC Hi-Pot and Burn-Down modes for insulation testing and conditioning

  • Integrated automatic discharge and interlock protection

  • Compact, wheeled design for field portability

  • Air-cooled, heavy-duty construction for industrial environments

Technical Specifications

Parameter Specification
Output Voltage 0–8 / 16 / 32 kV (selectable)
Surge Energy 1000 J each range
Output Current Max 240 mA
Input Supply 230 V AC ±10 %, 50 Hz ±1 %, 1.8 kVA
DC Withstand Test 0–32 kV, 6–24 mA
Burn-Down Current 60–240 mA
Impulse Rate Manual / 3 s / 6 s / 9 s
Cooling Air-cooled
Discharge System Automatic internal discharge
Dimensions 780 × 720 × 830 mm
Weight ≈ 125 kg
Environment 0–50 °C, ≤ 95 % RH

Standard Accessories

  • HV output cable (5 m)

  • Earth cable (5 m)

  • Mains supply cable (3 m)

  • Discharge rod

  • User manual & test report

  • Calibration certificate

Optional Accessories / Modes

  • DC Hi-Pot Test Mode (0–32 kV / 24 mA)

  • Burn-Down Mode (0–8 / 16 / 32 kV, 60–240 mA)

  • Sheath Fault Test Mode (0–8 kV / 240 mA)

  • Extended HV Cables (10–25 m)

  • CFL PP3 Pinpointing System

  • PL Series Prelocators (PL2+, PL3, PL4)

Applications

  • Fault location in LV, MV & HV underground cables

  • Integration with CFL PL & PP3 for full fault detection chain

  • DC insulation and sheath testing

  • Fault conditioning and burn-down for damaged XLPE or PILC cables

  • Routine maintenance and diagnostic testing in utilities, mines, and industrial sites
