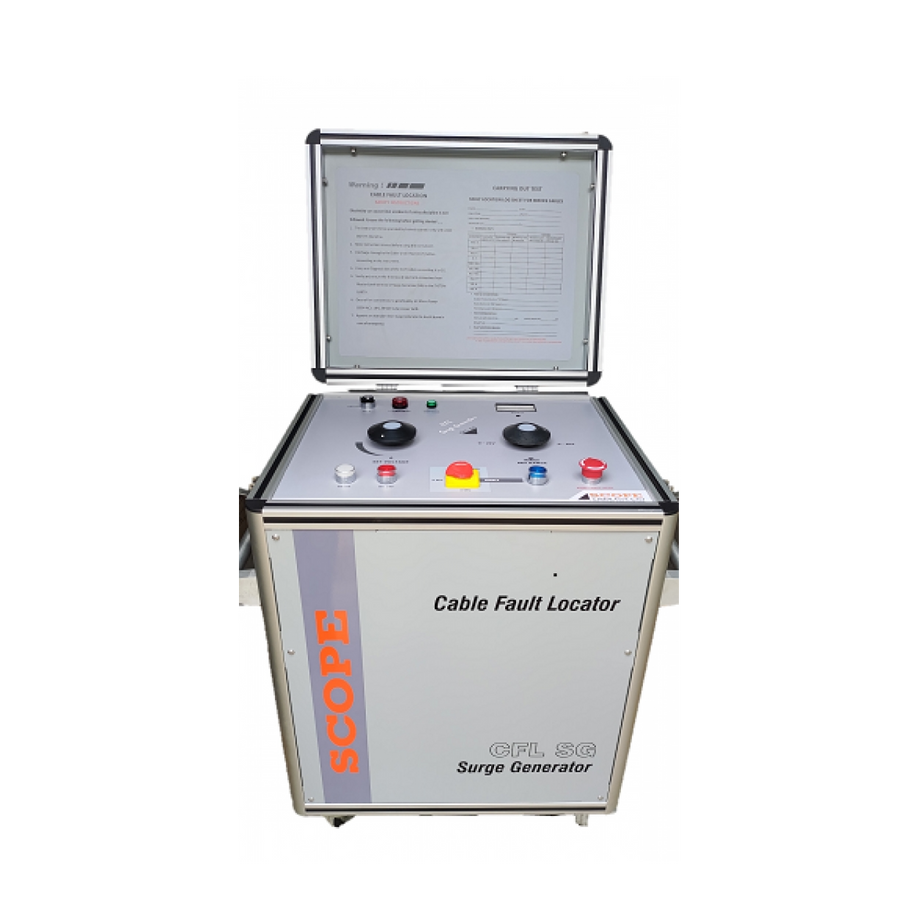

CFL SG 0810 Surge Generator

The CFL SG 0810 is a compact portable surge generator designed for precise fault location in low-voltage (LV) and medium-voltage (MV) power and communication cables. Delivering up to 8 kV output voltage and 1000 J surge energy, it provides the impulse source for pinpointing faults using the CFL PP3 system and distance prelocation with CFL PL-Series prelocators.

Key Features

  • Output voltage range: 0 – 8 kV, surge energy 1000 J

  • Supports TDR / SIM / ARM / MIM fault prelocation with PL-Series instruments

  • Compatible with PP3 acoustic pinpointing system

  • DC Hi-Pot and Burn-Down modes for insulation testing and fault conditioning

  • Built-in safety interlocks, earthing detection and auto-discharge

  • Digital control panel with indicator lamps and fault reset functions

  • Compact, wheeled case for easy field mobility

  • Maintenance-free air-cooled operation

Technical Specifications

Parameter Specification
Output Voltage 0–8 kV
Surge Energy 1000 J
Output Current Max 240 mA
DC Withstand Range 0–8 kV
Input Supply 230 V AC ±10 %, 50 Hz ±1 %, 1.2 kVA
Impulse Rate Manual / 3 s / 6 s / 9 s
Discharge System Automatic internal discharge
Dimensions 680 × 550 × 780 mm
Weight ≈ 65 kg
Cooling Air cooled
Environment 0–50 °C, ≤ 95 % RH

Standard Accessories

  • HV output cable (5 m)

  • Earth cable (5 m)

  • Mains power cable (3 m)

  • Discharge rod (optional)

  • User manual & calibration report

Optional Accessories

  • HV cable extensions (10–25 m)

  • PP3 Pinpointing Set (for acoustic fault location)

  • PL-Series TDR Prelocator for distance-to-fault measurement

Applications

  • Pinpointing and prelocating LV / MV cable faults

  • High-resistance fault conditioning via burn-down mode

  • Integration with PL and PP3 systems for complete cable fault location

  • Suitable for distribution utilities, industrial plants, and service teams
