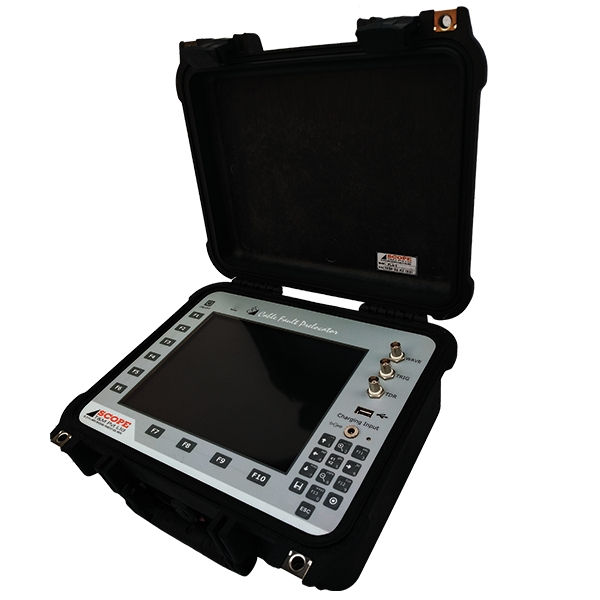

CFL PL4+ Cable Fault Prelocator (Advanced Series)

The CFL PL4 is an advanced portable cable fault prelocator designed for fast and accurate fault distance measurement on LV and MV power cables. It combines Time Domain Reflectometry (TDR), Surge Impulse (SIM), and Arc Reflection (ARM) methods to locate high-resistance and intermittent faults with precision. The system offers multiple waveform storage, automatic impedance matching, and full PC connectivity for trace analysis and reporting.

Key Features

  • Measures open, short, high resistance & intermittent faults

  • Supports TDR, SIM, ARM, and MIM techniques

  • Measurement range up to 64 km with 0.1 m resolution

  • High sampling rate for accurate trace display

  • Dual-trace comparison with zoom, shift, and cursor functions

  • Built-in auto-impedance matching for different cables

  • Cable library for VOP settings and user storage

  • Internal battery and mains operation

  • USB & RS-232 data interfaces for PC connection

Technical Specifications

Parameter Specification
Measurement Range Up to 64 km
Accuracy ±(1 m + 0.01 % of distance)
Resolution 0.1 m
Sampling Rate 100 MHz
Pulse Amplitude 10 – 30 V
Pulse Width 40 ns – 6 µs
Output Impedance 25 Ω – 600 Ω
Propagation Velocity 1.00 – 3.00 ×10⁸ m/s
Display 640 × 480 high-contrast LCD
Memory 100 traces
Interface RS-232 / USB
Power Supply AC 230 V ±10 % or internal Li-ion battery
Operating Time ≈ 8 hours
Weight ≈ 3.5 kg

Standard Accessories

  • Test leads (pair)

  • Trigger cables

  • Charger unit

  • RS-232 / USB cable

  • Operating manual & calibration report

  • Soft carrying case

Optional Accessories

  • Extended-length test leads

  • PC software for waveform storage and reporting

  • Printer interface

Applications

  • Power cable fault prelocation (LV / MV)

  • Pilot and telecom cable fault distance testing

  • Integration with CFL SG series surge generators

  • Training & maintenance diagnostics
